System 550
Modular Electronic Controls
Unlock System 550's Full Potential
System 550 is a modular electronic control solution that provides single or multi-stage on/off, proportional or proportional plus integral temperature, humidity and/or pressure control. It is the first of its kind to include A2L refrigerant leak sensing and mitigation functionality to ensure you are meeting A2L refrigerant regulations. Plus, always stay connected to your system with Control System Cloud, our optional two-way cloud connectivity solution.
Read the System 550 BrochureSystem 550 Features
- A2L refrigerant leak detection and mitigation: Fully compliant with UL standards 60335-2-40 and 60335-2-89

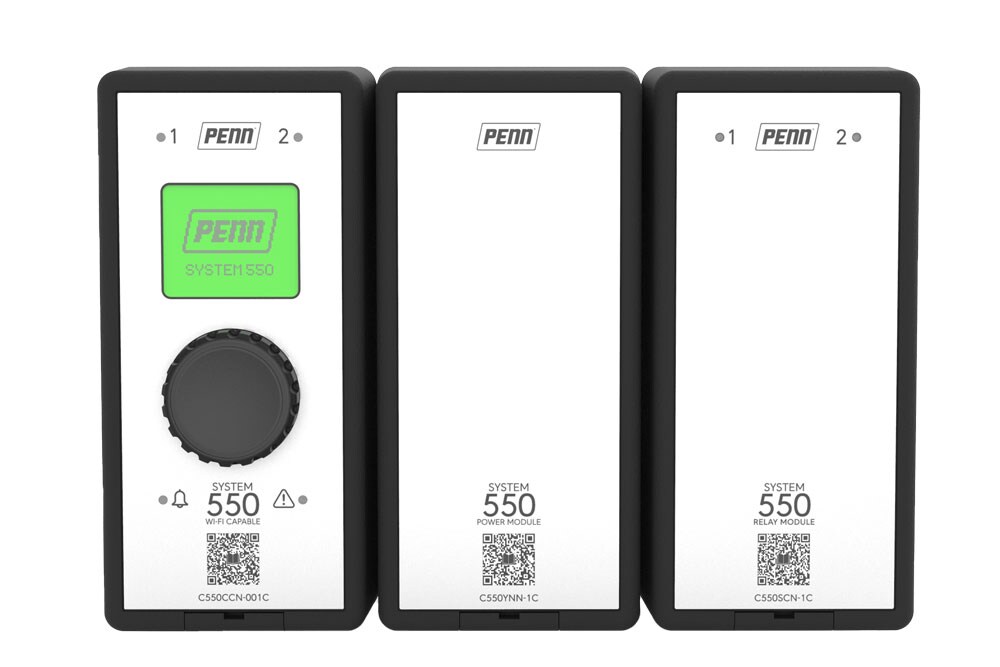

- Modular design: Mix and match control and expansion modules (relay and/or analog) to meet your application needs
- Multi-stage controller: Supports staged on/off control of temperature, humidity and/or pressure
- Proportional-plus-integral control: For analog outputs, choose from proportional or proportional-plus-integral control
- Full-character display: Provides clear and concise menus and the ability for users to customize sensor and output names
- Rotary dial: Use simple rotate and press actions to navigate the menu, designed for increased usability and accessibility

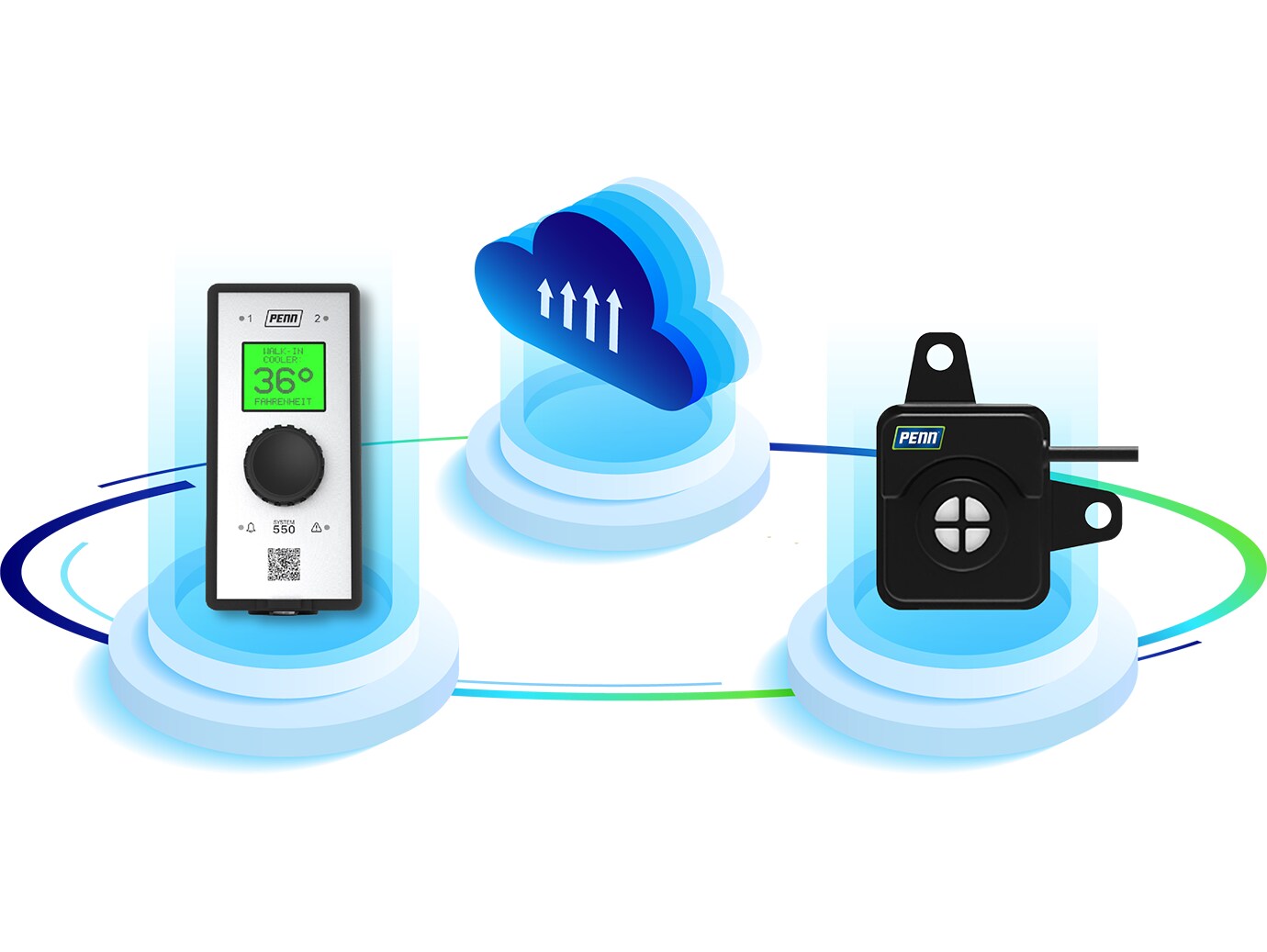

- Two-way wireless cloud connectivity: Remotely monitor HVACR system health from anywhere in the world, change menu settings and review and download trend data to assist in troubleshooting
- Fault and alarm indicators: Features LEDs, and on-screen icons and text that indicate system related issues, also supports optional SMS text and email alerts through the cloud
- USB-C port: Facilitates quick transfer of configuration files and simple commissioning of C550 control modules
- Easy transition from System 350 to System 550: C550A control modules provide only one sensor input (temperature, humidity or pressure) and include a guided menu to facilitate easy set-up and replacement of System 350 control modules
Upgrade with Confidence: Smarter Control, Faster Setup, Greater Flexibility
Make the transition from System 350 to System 550 with ease—enjoy guided setup, expanded output options, and smarter control capabilities designed to future-proof your HVAC-R system.
Streamlined Setup & Support
- Guided setup menu simplifies replacement of legacy System 350 control modules.
- Supports only one sensor input for temperature, pressure, or humidity.
Flexible Output Options

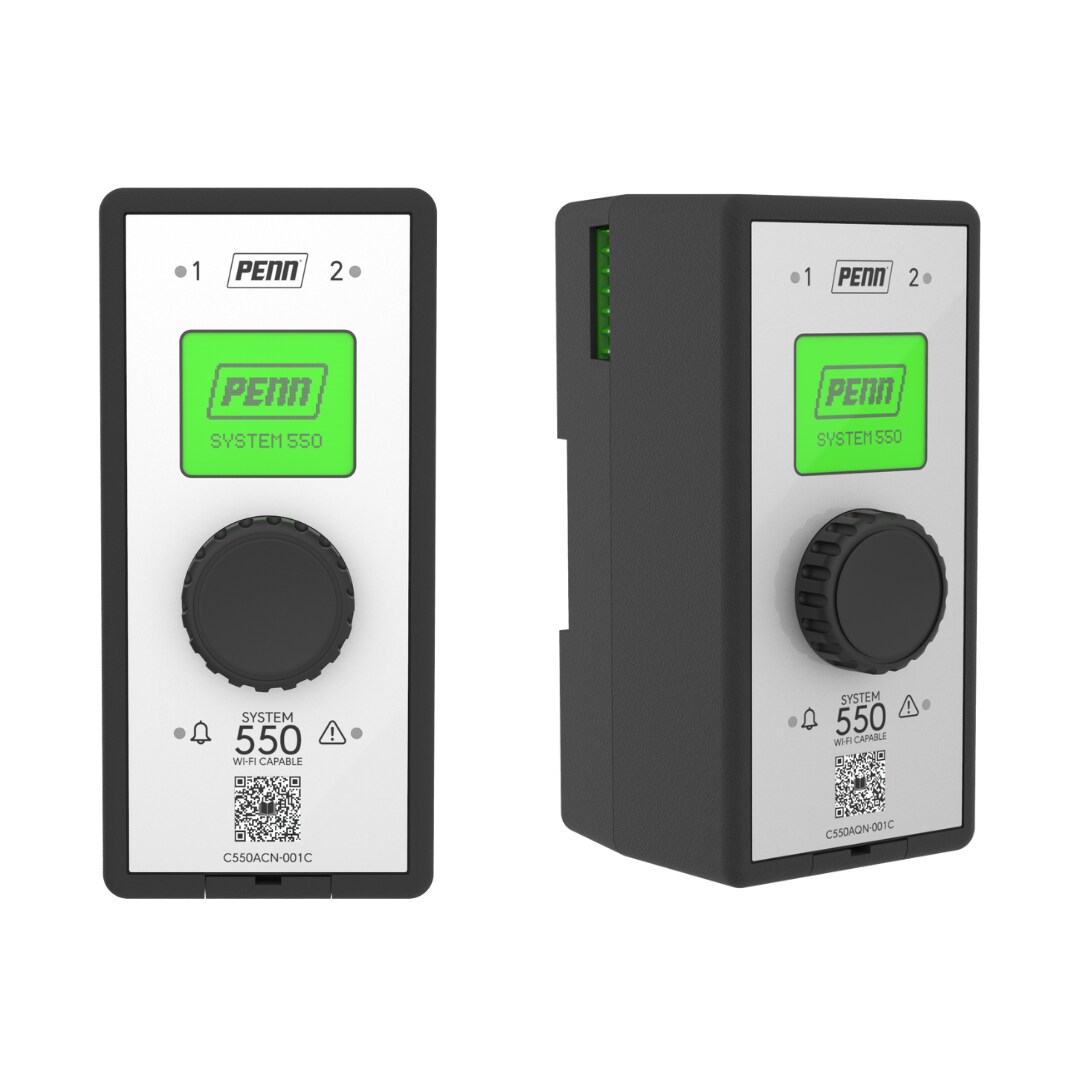

- C550ACN: Includes two relay outputs for on/off control.
- C550AQN: Includes two analog outputs for proportional control.
Expandable Output Capacity
- Add relay or analog expansion modules to the C550ACN.
- Expand up to 10 total outputs for broader control applications.
